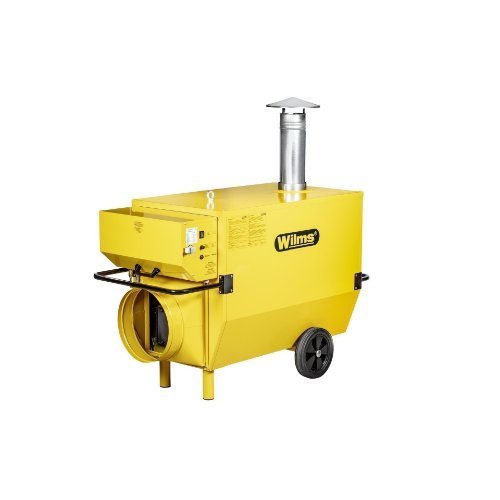

WILMS hot air turbine with exhaust gas routing BV 265 GAS (version with natural gas or liquid gas burner)
Fully automatic warm air heater with flue gas routing and very high efficiency
Price after login
As an approved dealer you see your conditions and can put together enquiries.
- Product number:
- 1242266
- EAN code:
- 4027755817864
- Fully automatic heat generator
- High efficiency
- Many areas of application, such as workshops, halls, etc.
- Extensive accessories can be ordered
The WILMS hot air turbine with flue outlet (flue gas pipe and rain bonnet available as accessories) has a very high efficiency and easily fulfils the strict flue gas standards of the BImSchG.

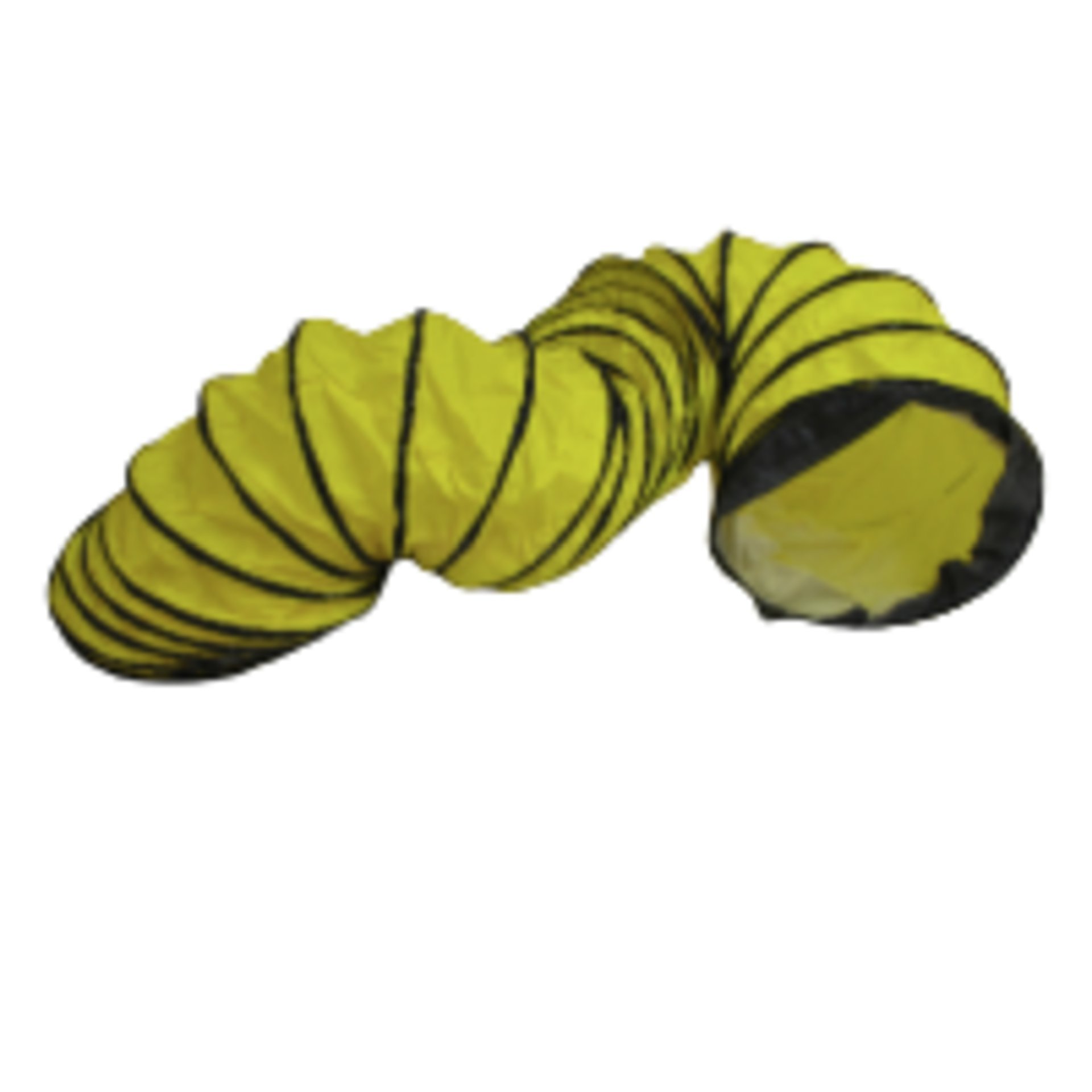

With an attachment piece (accessory) and with or without a Y-pipe (accessory), the appliance can also be operated with hot air hoses (accessory) to distribute the hot air in a targeted manner.
Note:
All natural and liquid gas burners may only be put into operation on site by an authorised gas fitter
When ordering, it is essential to specify whether a natural gas or LPG burner is to be installed!
Applications
- Heating and ventilation of workshops, halls, etc.
Your benefits
- versatile due to extensive accessories
Scope of supply

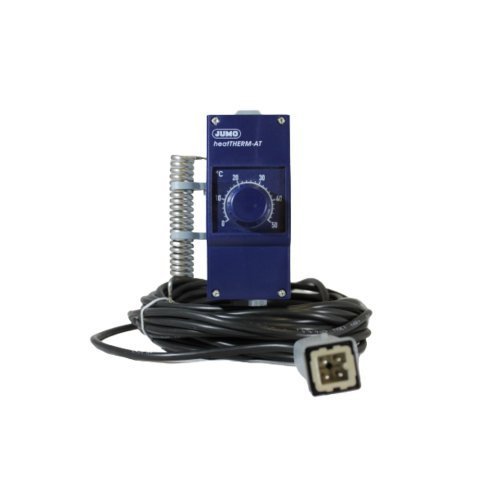

- Including damp room thermostat
- Flame detector included
- Heating capacity
- 70 kW
- Air performance
- 6300 m³/h
- Pressing
- 140 Pa
- Supply voltage
- 230 / 50 V/Hz
- Dimensions (L x W x H)
- 1660 x 725 x 1170 mm
- Weight
- 205 kg
- Exhaust pipe Ø
- 150 mm
- Outlet nozzle Ø
- 450 mm
- Noise emission
- 70 dB (A)
- Max. gas flow rate (liquid gas)
- 2,71 m³/h
- Gas flow rate max. (natural gas L)
- 7,53 m³/h
- Gas flow rate max. (natural gas H)
- 7,02 m³/h
- Max. gas flow rate (town gas)
- 15,66 m³/h
- Fan function
- Yes
- Origin
- Germany
- Item number
- 1242266
- EAN code
- 4027755817864
