Wilms undercoat drying package

Professional drainage of screeds, cavity floors and flat roofs

Available, delivery time: 3-4 weeks

To order this product, please log in here.

Product number: 8001100

EAN-Code: 4027755821014

robustly built for tough construction site use
Display with consumption values
expandable for room sizes up to 80m²
Mould spores are filtered out and do not get into the room air
compatible with "normal" 40 mm hoses

Downloads

Datenblatt_8001100.pdf

Produktdatenblatt_#SUPPLIERPID#_#DATE#

Bedienungsanleitung AS 80 AS 80-SVS.pdf

Gebrauchsanleitung

Bedienungsanleitung VD 40 VD 40-SVS.pdf

Gebrauchsanleitung

Product information "Wilms undercoat drying package"

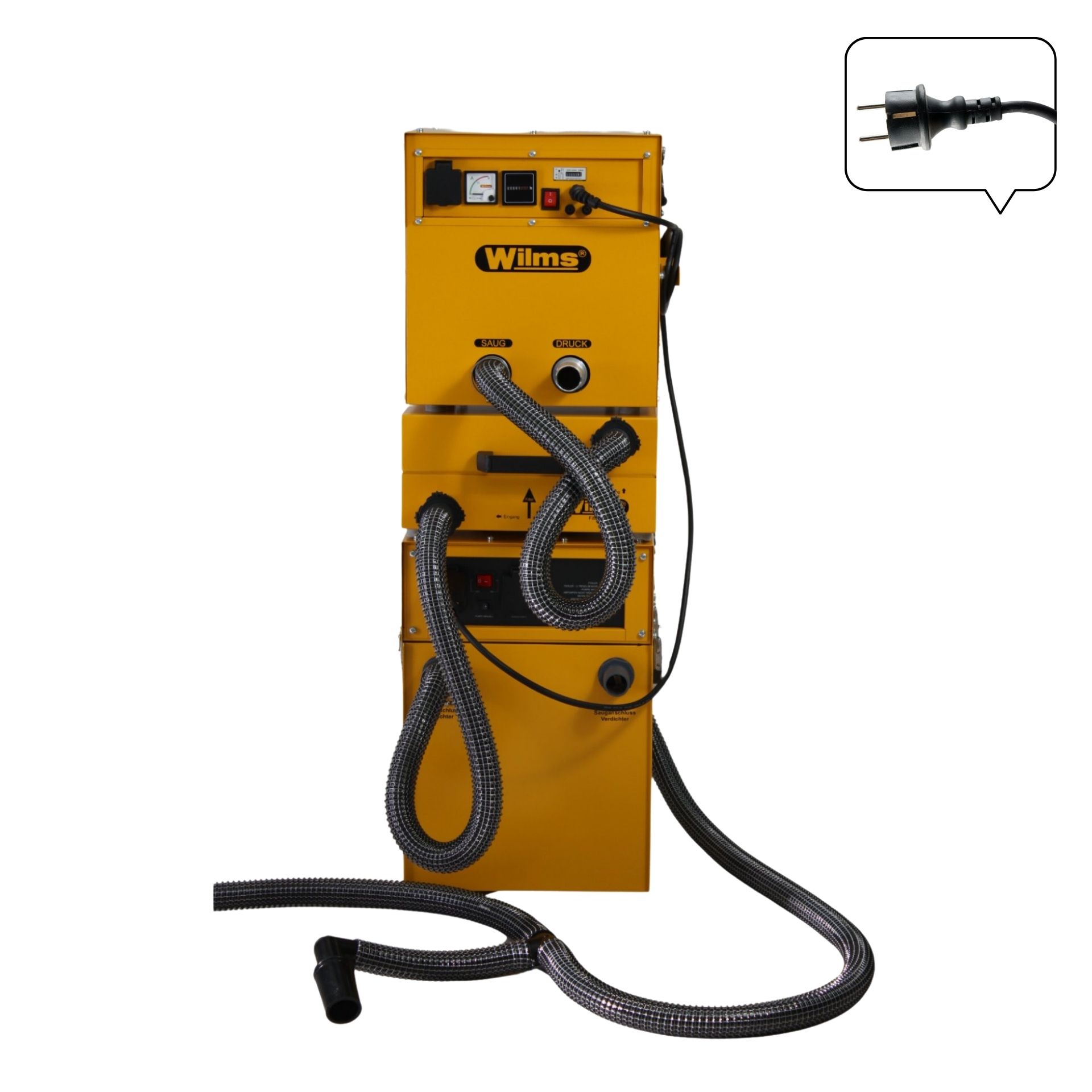

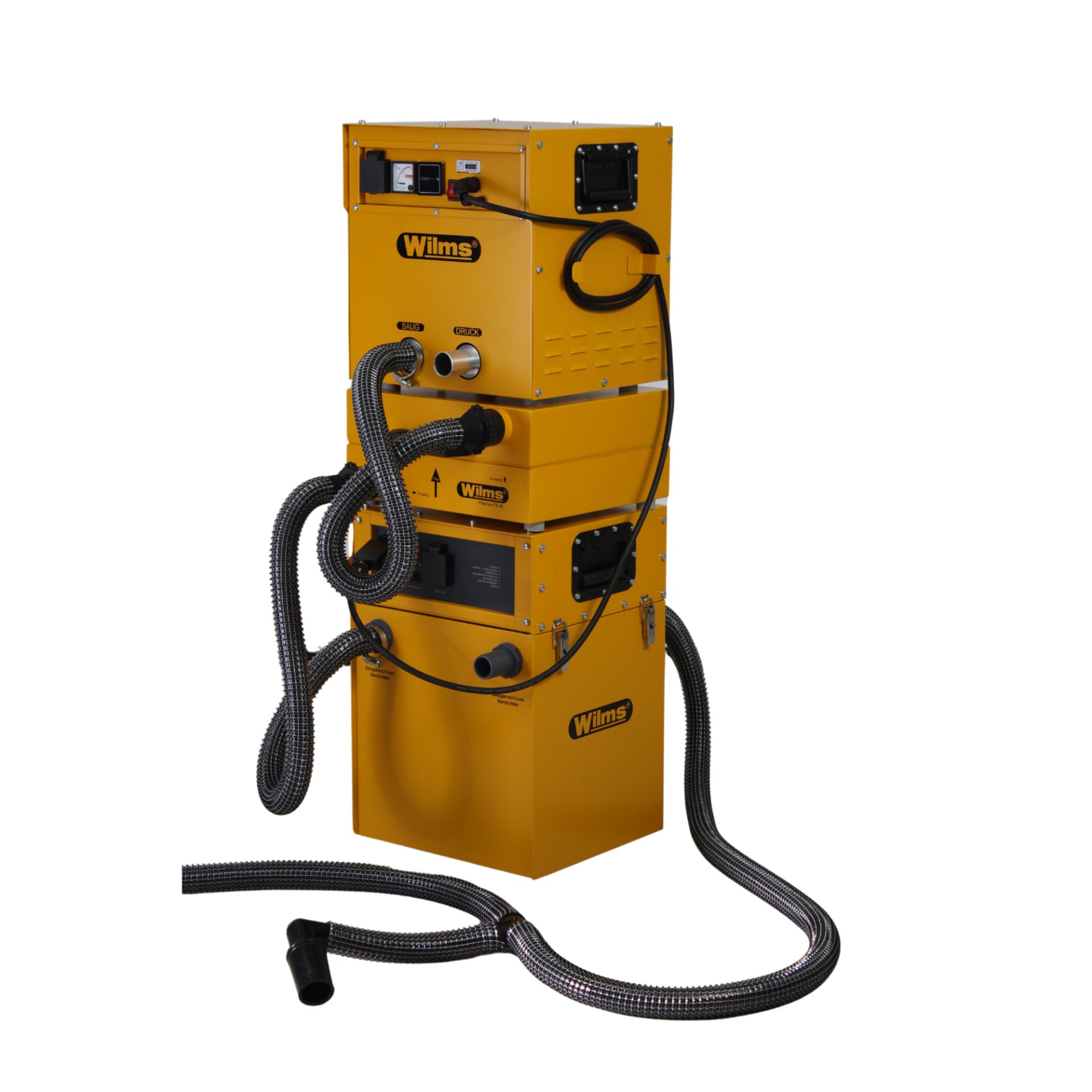

Set for underfloor drying using the negative pressure method for rooms up to 40m².

With a second compressor and a second accessory set, room sizes up to 80m² are possible.

The use of additional dehumidifiers and fans is recommended to support rapid drying.

Power consumption:	1,5 kW
Supply voltage:	230 / 50 V / Hz
Weight complete set:	90 kg
Headroom:	8 m
Filter class:	H 13

Product request

Please fill up this request form. We will touch in contact immediately.

Firstname *

Lastname *

Company

E-Mail *

Telephone-Number

Street *

Postcode *

City *

Subject

Message *

Subscribe newsletter

By selecting continue you confirm that you have read our data protection information and accepted our terms of data use, and general terms and conditions. *

Please enter the characters shown above*

Fields marked with asterisks (*) are required.

Scope of supply

Compressor with operating hours counter and MID counter
Separator with integrated pump
Filter box with H 13 filter

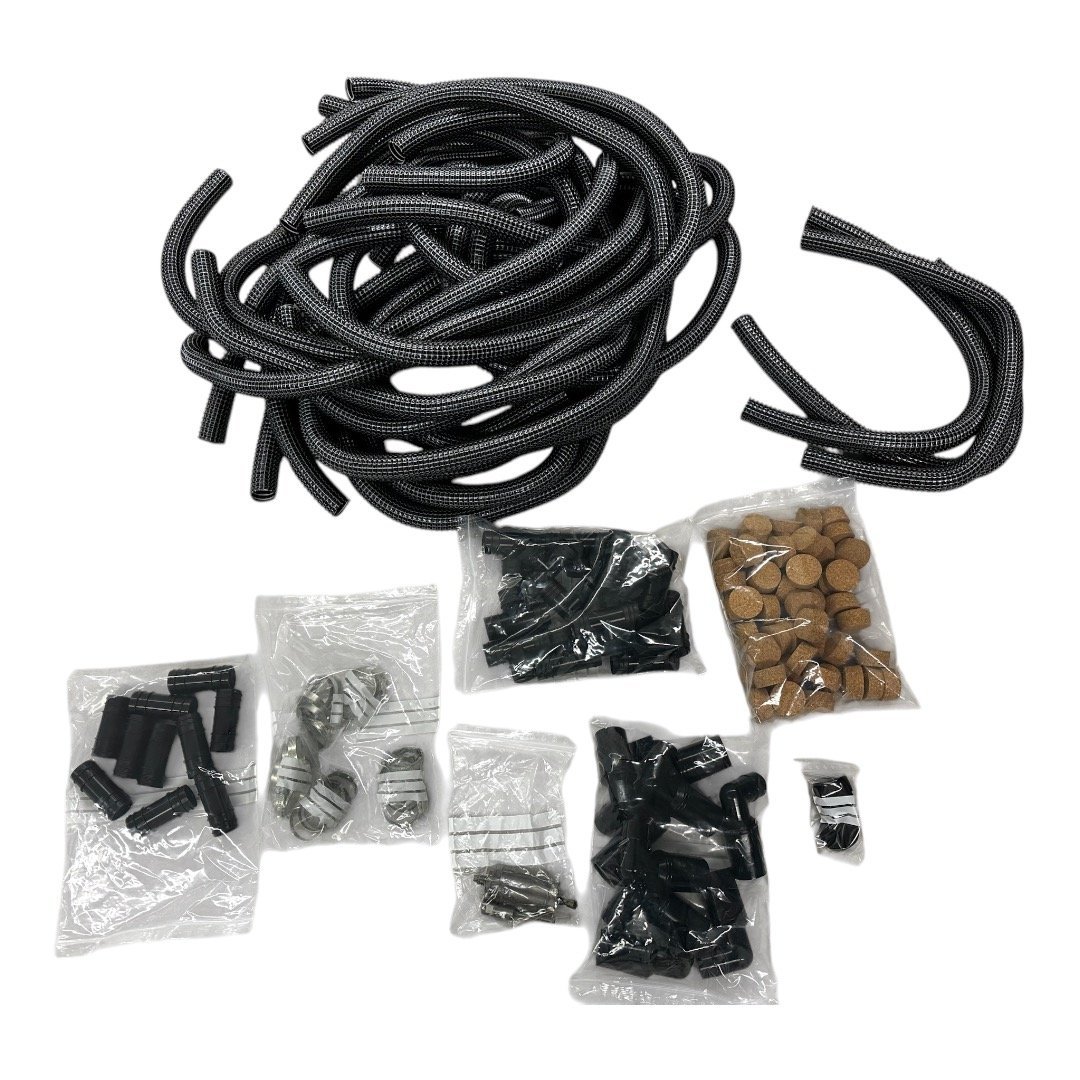

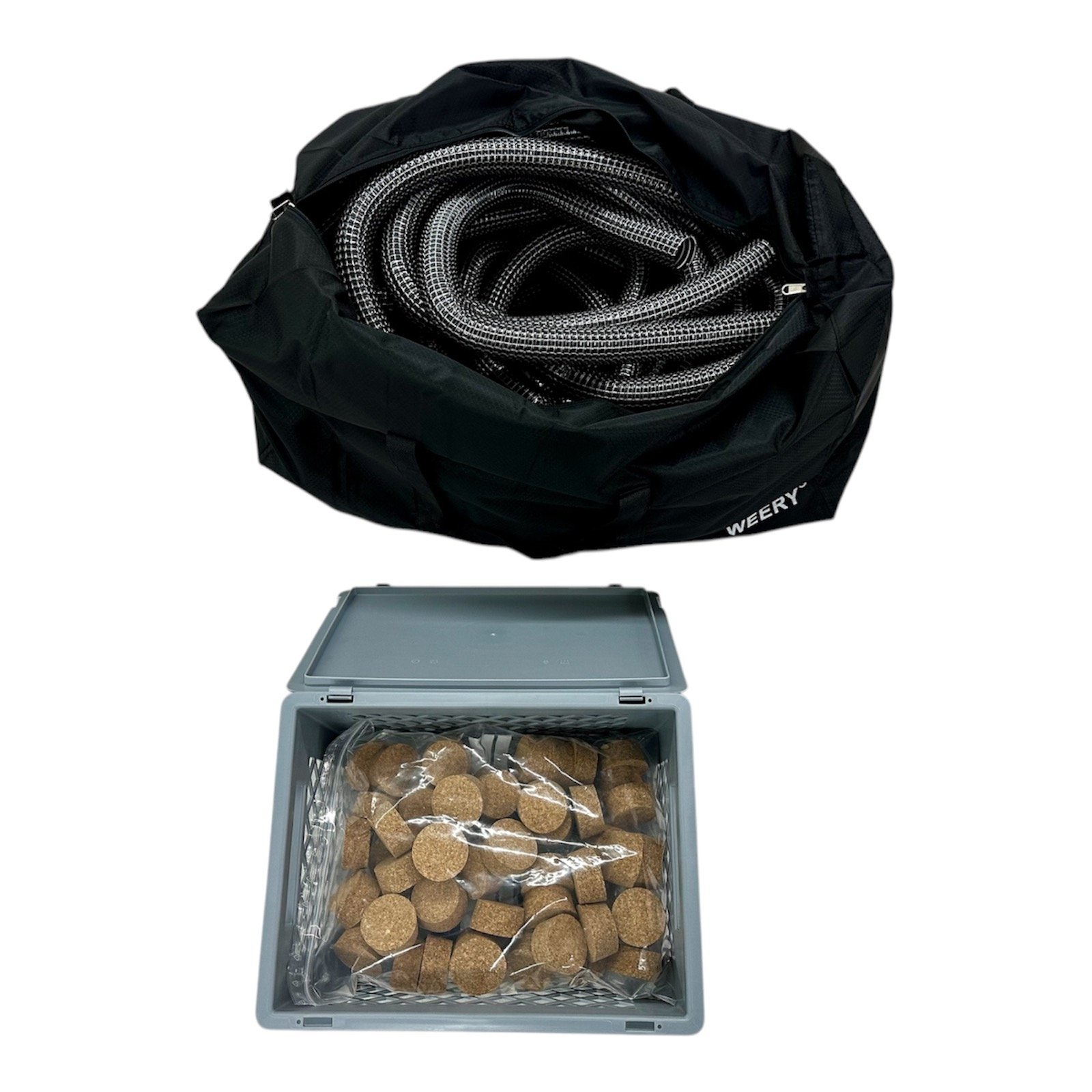

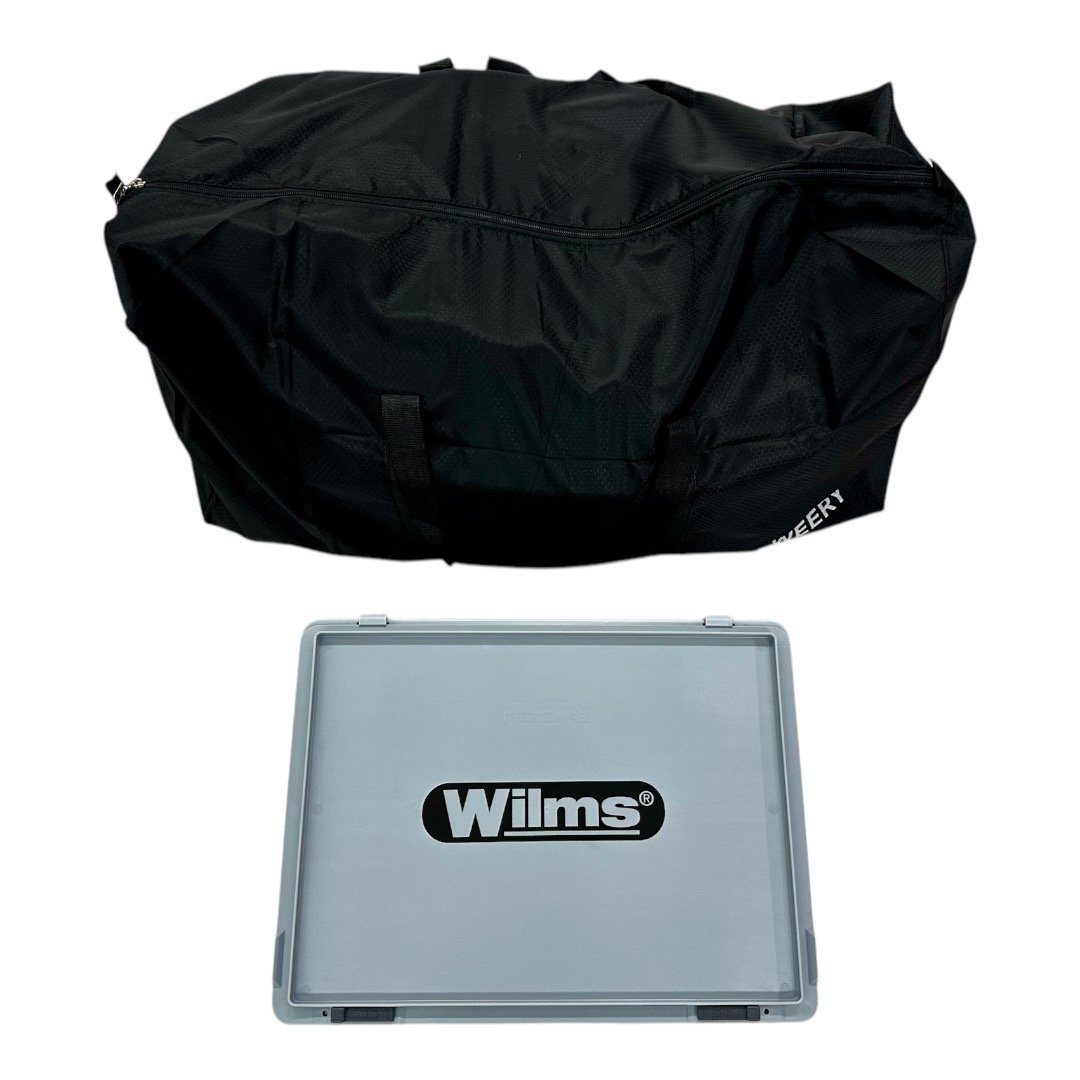

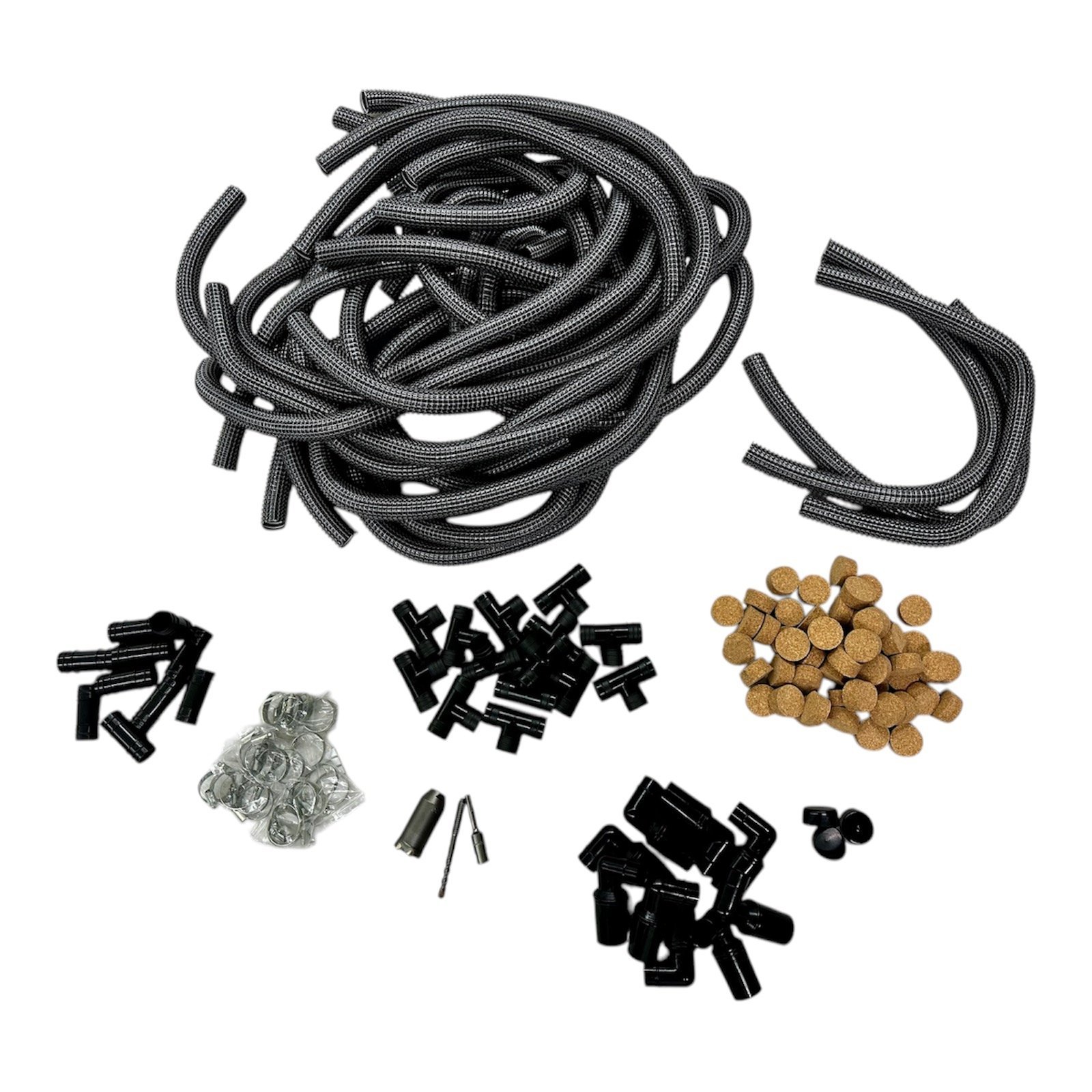

Hose set with nozzle, drill and cork stopper in transport bag
H 13 Filer integrated in filter box

Accessories

Hose - 38 mm 15 metres

Delivery time 3-4 weeks

Product number 8000630

To order this product, please log in here.

Details

Spares

HEPA filter H 13 for FB 40

Delivery time 3-4 weeks

Product number 8000518

To order this product, please log in here.

Details

Components

WILMS compressor VD 40

Compressor in robust, sound-insulated metal housing with suction and discharge connections for 38 mm and 50 mm hose systems.

Delivery time 3-4 weeks

Product number 8000600

To order this product, please log in here.

Details

WILMS Separator AS 80

Separator for water/solids in a robust, sound-insulated metal housing with suction and pressure connection for 38 mm and 50 mm hose systems. The AS 80 separator is suitable for drying insulation layer constructions with standing water in floating screeds, warm roof flat roofs, cavity floors, etc. both for smaller areas up to 40 m2 with one VD 40 unit and for larger areas up to 80 m2 where two VD 40 units are connected to the AS 80 separator. The check valves in the separator itself prevent the compressors from starting up incorrectly when two VD 40 units are used.

Delivery time 3-4 weeks

Product number 8000605

To order this product, please log in here.

Details

Under screed drying accessory set

for rooms up to 40m²

Delivery time 3-4 weeks

Product number 8000660

To order this product, please log in here.

Details

WILMS FB 40 filter box for VD 40

incl. Hepa HEPA filter H 13

Delivery time 3-4 weeks

Product number 8005040

To order this product, please log in here.

Details
